MTH251
Data Structures and Algorithms I
MTH251
Data Structures and Algorithms I
Course Structure
- Python, Complexity & Big O
- Array, Stack, Queue, and Recursion
- Linked List
- Tree
- Lineary Search, Binary Search, and Algorithm Design & Pattern
- Review and more
Slides & Notebooks
slides online: https://mth251.fastzhong.com/
https://mth251.fastzhong.com/mth251.pdf

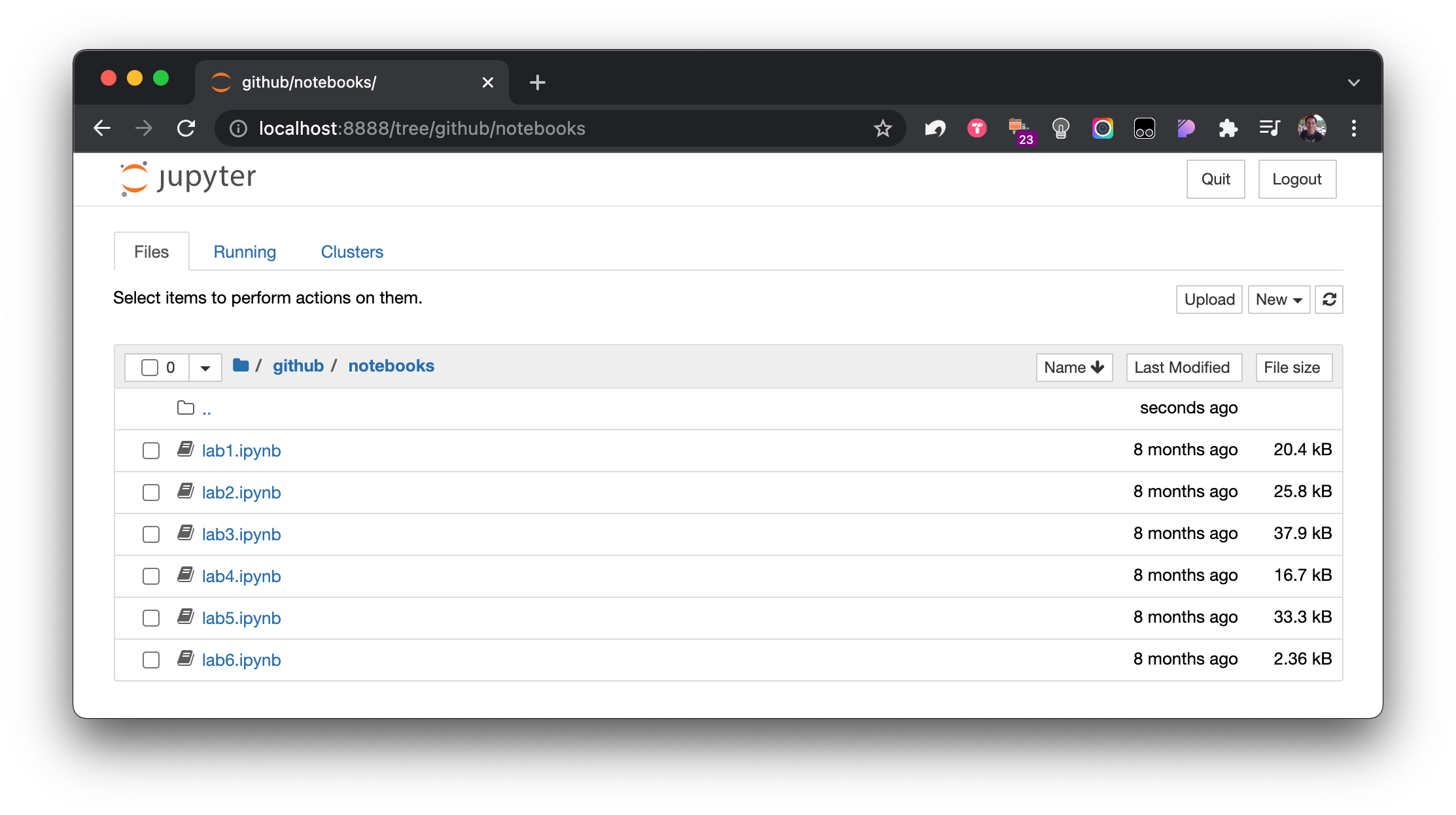

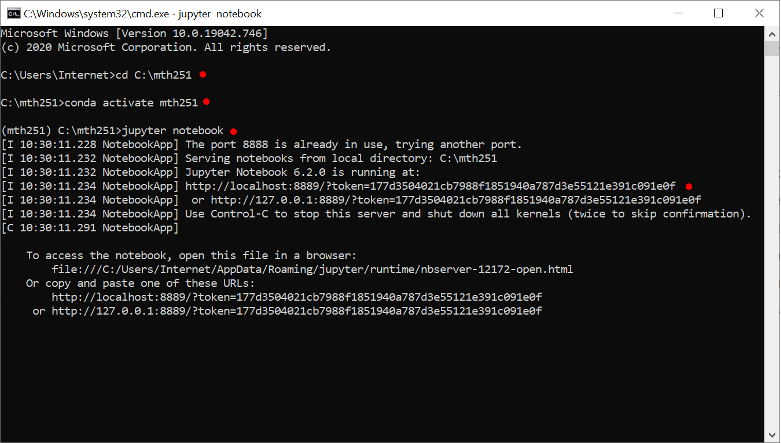

labs: https://github.com/fastzhong/mth251/tree/main/public/notebooks
🏃♂️ learning by doing, implementing the algo from scratch
🙇🏻♂️ problem solving
Learning Resource
if you want to dive deeper into proofs and the mathematics of computer science:
📚 Building Blocks for Theoretical Computer Science by Margaret M. Fleck
Clarification
Solution related to DSA questions:
⚠️ always seek the best time and space complexity by appling DSA taught in MTH251 & MTH252
⚠️ in principle, only the standard ADT operations allowed to use by default as the solution has to be language indenpendent
⚠️ advanced features and built-in functions from Python not allowed if not clearly asked by the question, e.g. sort/search/find (in)/min(list)/max(list)/set/match … , as the complexity becomes unknown and Python dependent
Python
Why Python

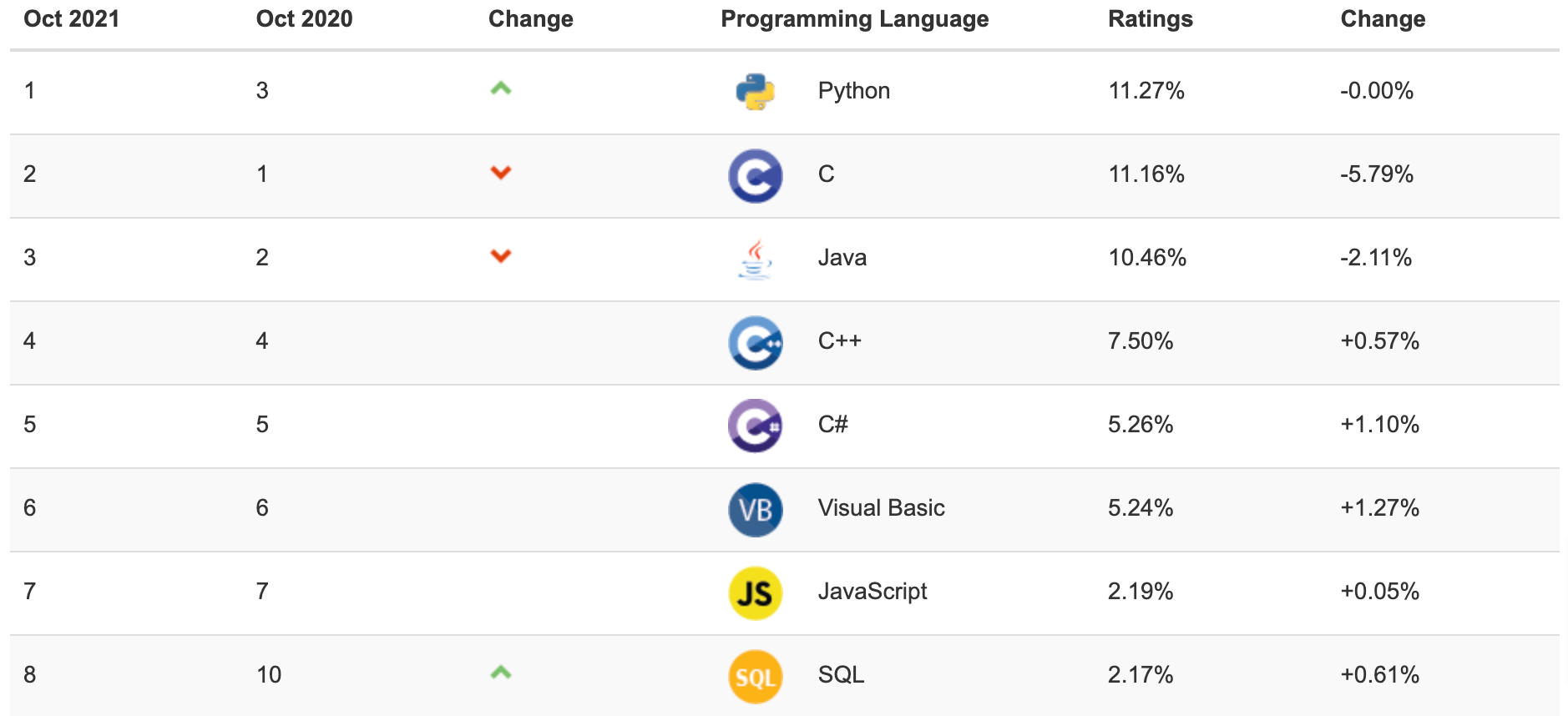

The TIOBE Programming Community index is an indicator of the popularity of programming languages.
Why Python
✔ Easy To Learn
✔ Human Readable
✔ Productivity
✔ Cross Platform
The Zen of Python, by Tim Peters
Beautiful is better than ugly.
Explicit is better than implicit.
Simple is better than complex.
Readability counts.
Special cases aren’t special enough to break the rules.
There should be one-- and preferably only one --obvious way to do it.
If the implementation is hard to explain, it’s a bad idea.
Python Jobs
✔ backend: Python vs. Java, C++, Go, Php
✔ devops: Python vs. Go, Ruby, Shell
✔ test automation: Python vs. Groovy, shell
✔ data engineering: Python vs. Java, C++
✔ data analytics & visualization: Python vs. R, Java, C++
✔ data science & machine learning: Python vs. R, Julia, C++
Python 101
Python Data Type & Operators
numbers: int float complex
- arithmetic operator: + - * / // % **
- bitwise operator: & | ^ >> << ~
- range(): a list of integers
strings: '' "" ' " \t \n \r \\ etc.
- join() split() ljust() rjust() lower() upper() lstrip() rstrip() strip() etc.
boolean: True False
- True: non-zero number, non-empty string, non-empty list
- False: 0, 0.0, "", [], None
Python Data Type & Operators
boolean: True False
- logic operator: and or not
- comparison operator: > < >= <= == ！=
- identity operator: is is not
None
type conversion/casting: int() float() str() bool() hex() ord()
Python Collections
collections: list tuple set dictionary
- membership operator: in not in
list []: a collection of items, usually the items all have the same type
- sequence type, sortable, grow and shrink as needed, most widely used
tuple (): a collection which is ordered and unchangeable
set {}: a collection which is unordered and unindexed
dictionary: a set of key: value pairs, unordered, changeable and indexed
Python Program Structure
variable
statement & comments
- Python uses new lines to complete a command, as opposed to other programming languages often use ; or ()；relies on indentation (whitespace sensitive), to define scope, such as the scope of loops, functions and classes, as opossed to other programming languages often use {}
control flow
- if … elif … else
- while for break continue
Python Program Structure
function
- def return
- main
- advanced:
- lambda
- decorator
- closure
error/exception
- handling exception: try … except … else … finally
- raise execption: raise
Python OO & Class
Procedural vs. OOP vs. FP
OO Principal
- Inherience
- Encapsulation
- Polymorphism
class, instance, attributes, properties, method
override vs. overload vs. overwrite
Misc.
modular programming: function → class → module → package
Modules: Python module (default main module), C module, Build-in module
Packages:
- Standard Lib: math random re os itertools collections
Misc.

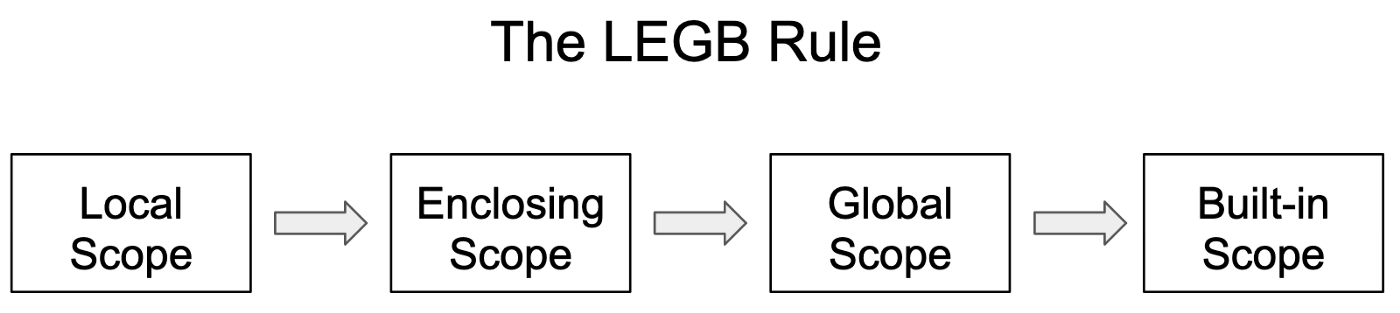

- Namespaces & Scopes: LEGB rule
memory, copy vs. deepcopy
help
Cheatsheet:
🧾 Python Crash Course - Cheat Sheets
🧾 Comprehensive Python Cheatsheet
Python Tutorials
Programming with Mosh
Python Tutorial - Python for Beginners 2020
freeCodeCamp
Learn Python - Full Course for Beginners Tutorial
Python for Everybody - Full University Python Course
Intermediate Python Programming Course
Tech With Tim
DSA & Complexity
Data Structure & Algorithms (DSA)
A data structure is a way of organizing information so that it can be used effectively by computer
Algorithms provides computer step by step instructions to process the information and solve a problem
Program = Data Structure + Algorithm
- Input
- Output
- Definiteness
- Effectiveness
- Finiteness
Data Structure & Algorithms

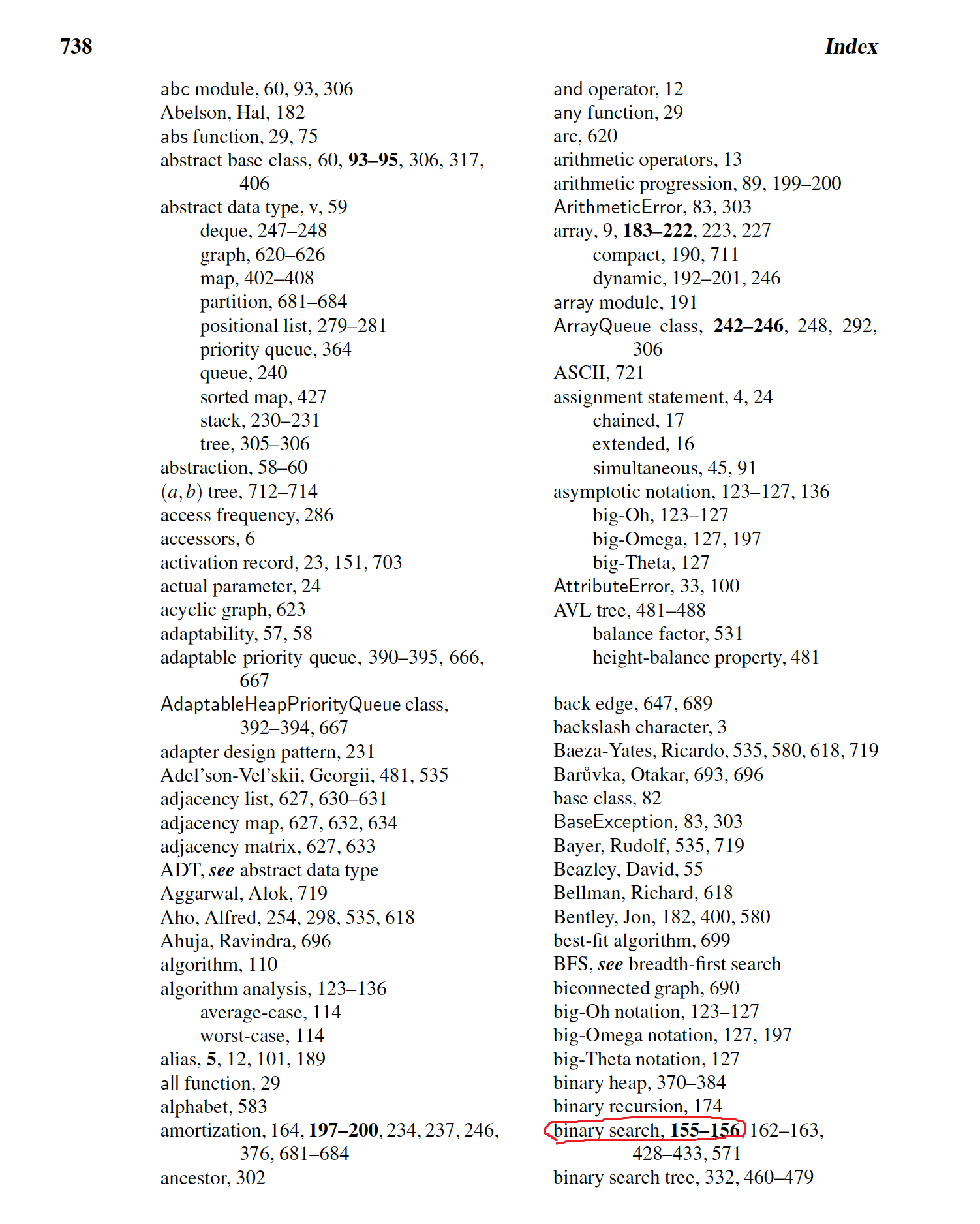

Example: keyword searching
Data Structure: index
Algorithm: looking up the page no.
Data Structure & Algorithms
Example: adding two vectors
Data Structure: complex number
Algorithm: adding two complex numbers
a + b = (x + yi) + (u + vi) = (x + u) + (y + v)i
Data Structure & Algorithms
Data Structure
- Linear
- Array, String, Linked List
- Stack, Queue, Deque, Set, Map/Hash, etc.
- Non-Linear
- Tree, Graph
- Binary Search Tree, Red-Black Tree, AVL, Heap, Disjoin Set, Trie, etc.
- Others
- Bitwise, BloomFilter, LRU Cache
Algorithms & Data Structure
Algorithms
- branching: if-else, switch
- iteration: for, while loop
- recursion: divide & conquer, backtrace
- searching: binary search, depth first, breath first, A*, etc.
- sorting: quick sort, bubble sort, merge sort, etc.
- dynamic programming
- greedy
- …
Algorithms & Data Structure
Why
✓ deeper understanding of computer system
✓ improve coding skill
✓ coding interview
✓ building powerful framework and library
How
🏃♂️ learning by doing, implementing from scratch
🙇🏻♂️ problem solving
Algorithm Complexity Analysis

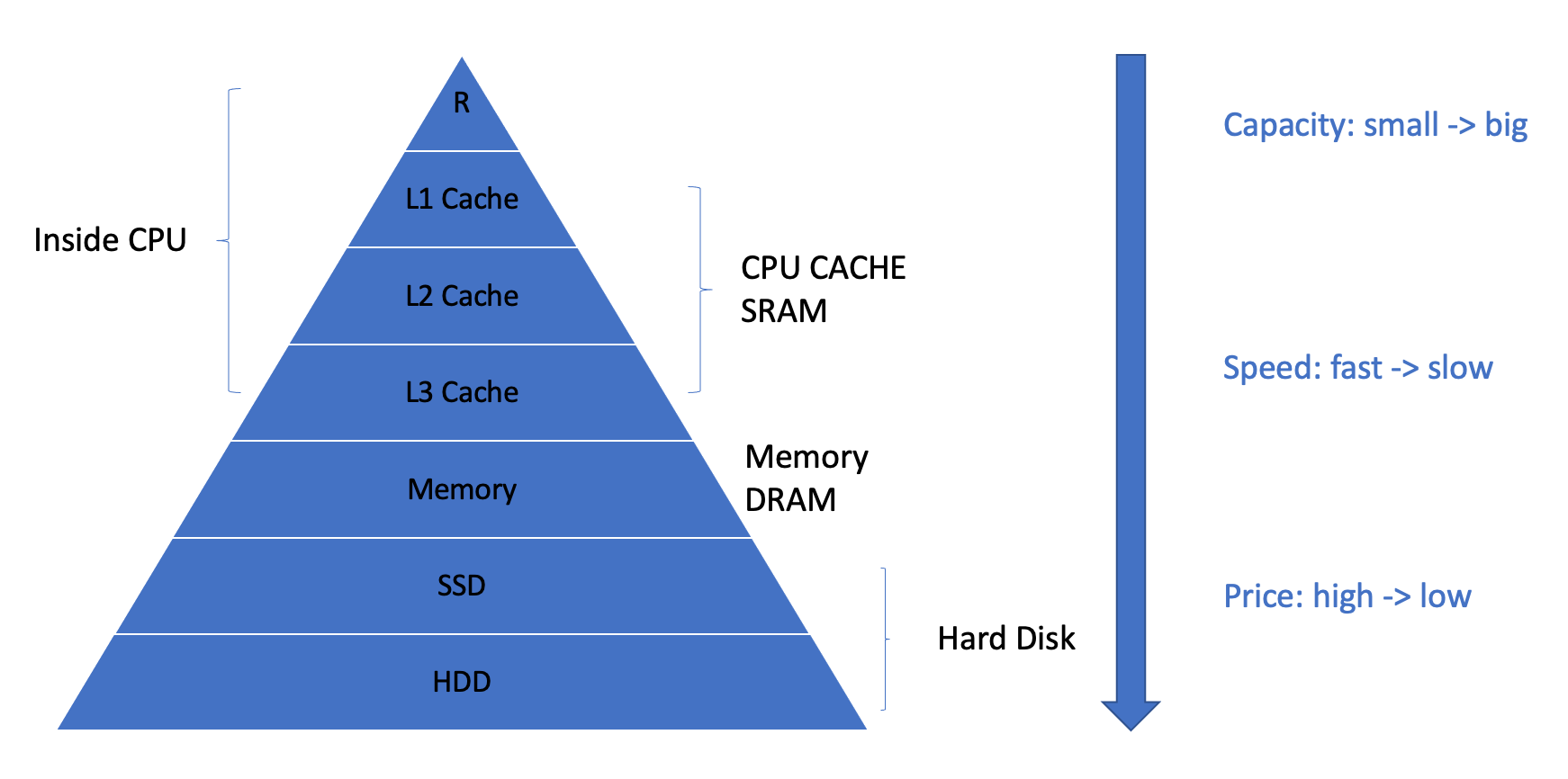

How to measure Performance/Efficiency ?
- cpu, memory, io, networking, etc.
- no. of lines
- worst case vs. best case
- code slows as data grows
- …
Algorithm Complexity Analysis
Time Complexity : by giving the size of the data set as integer N, consider the number of operations that need to be conducted by computer before the algorithm can finish
Space Complexity : by giving the size of the data set as integer N, consider the size of extra space that need to be allocated by computer before the algorithm can finish
Good code:
✔ readability
✔ speed
✔ memory
👉 When: Accessing, Searching, Inserting, Deleting, …
Big-O
Lef f(n) and g(n) be functions from positive integers to positive integers to positive reals
f = O(g) if there is a constant c > 0 such that f(n) ≦ c·g(n) for large n
f(n) grows no faster than g(n)
e.g.
f(n)=O(4n2+8n+16)→O(n2)→g(n)=n2
O(4n2+8n+16)=O(n2)
Big-O describes the trend of algorithm performance when the data size increases

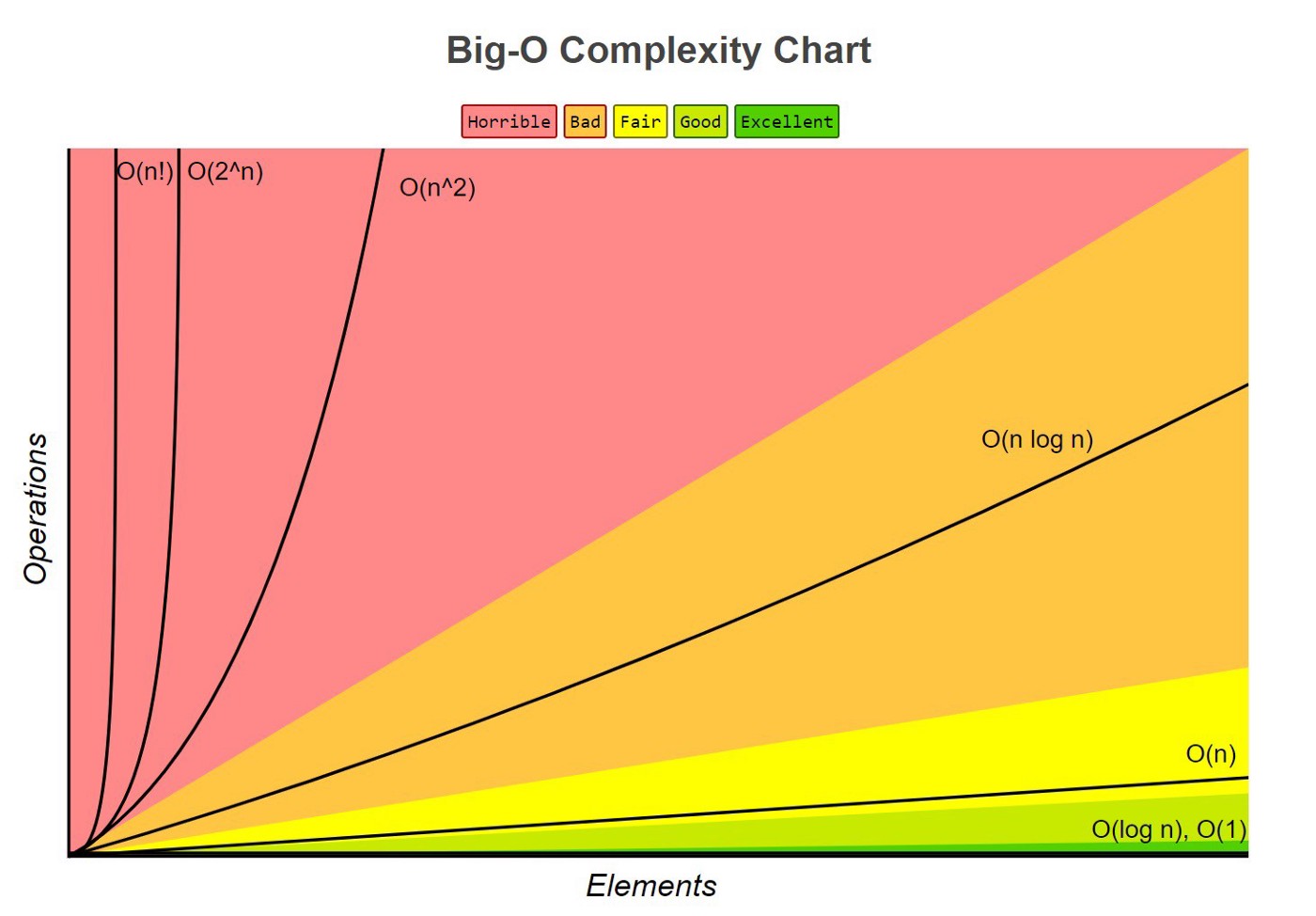

Big-O
| O(1): | constant |
| O(log∗n): | logarithmic |
| O(n): | linear |
| O(nlog∗n): | linearithmic |
| O(n2): | polynomial |
| O(2n): | exponential |
| O(n!): | factorial |
Big-O
👉 Master theorem (analysis of algorithms)
O(f)=f
O(c⋅f)=O(f)
O(f+g)=O(max(f,g))
O(f)⋅O(g)=O(f⋅g)
O(f⋅g)≤O(f⋅h) if & only if O(g)≤O(h)
O(xa)≤O(xb) if & only if a≤b
O(ax)<O(bx) if & only if a<b
O(xc)<O(dx) if & only if d>1 (assuming c≥1 and d≥1)
O(log∗x)<O(xc) if & only if c>0
Big-O
Analysis of Algorithms:
worst case
ignore constant factors, lower-order terms
asymptotic analysis (large input size)
Formally, given functions f (x) and g(x), we define a binary relation: f(x)∼g(x) (as x→∞)
if and only if: x→∞limg(x)f(x)=1
asymptotic analysis is used to build numerical methods to approximate equation solutions: asymptotic expansion, asymptotic distribution, …
Array
Array
To store a list of similar things, example:
A list of names: [“Alex”, “Bob”, “Charles”, “David”]
A list of numbers: [1, 2, 3, 4]
Each item in the array referred as “element”
Array
Element Type: same type (array is structured data)
Element Size: fixed
# java String[] cars = {“BMW”, “Toyota”, “Tesla”} // declare & init Integer[] scores = new Integer[10] // declare // init scores[0] = 90 scores[1] = 80# java String[] cars = {“BMW”, “Toyota”, “Tesla”} // declare & init Integer[] scores = new Integer[10] // declare // init scores[0] = 90 scores[1] = 80
- Element Index: 0, 1, …, length - 1
Array 2-D
students = [
[“Alex”, “M”, “S1111111A”],
[“Bob”, “M”, “S2222222B”],
[“James”, “M”, “S3333333C”],
]
students[2] → [“James”, “M”, “S3333333C”]
Students[1][2] → “S2222222B”
| Index | 0 | 1 | 2 |
|---|---|---|---|
| 0 | Alex | M | S1111111A |
| 1 | Bob | M | S2222222B |
| 2 | James | M | S3333333C |

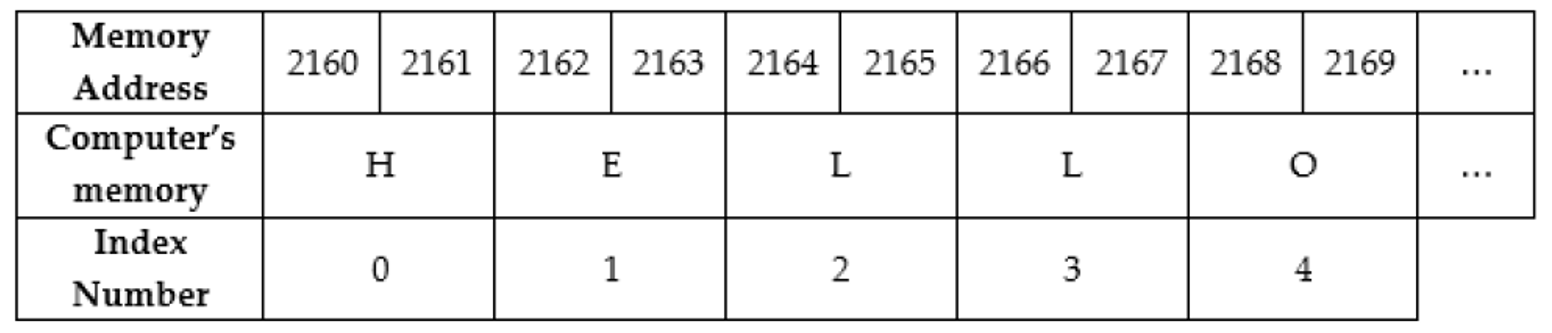

Array Address

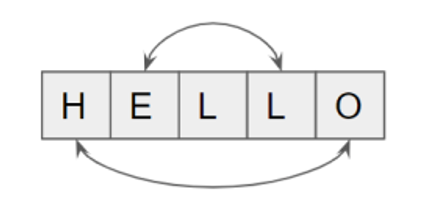

str = "HELLO" = ['H', 'E', 'L', 'L', 'O']
data type: char data type size: 2 byte (1 byte = 8 bits, 0000 0000 ~ 1111 1111)
total_size = array_size * data_type_size
array[i].address = base_address + i * data_type_size
👉 O(1)

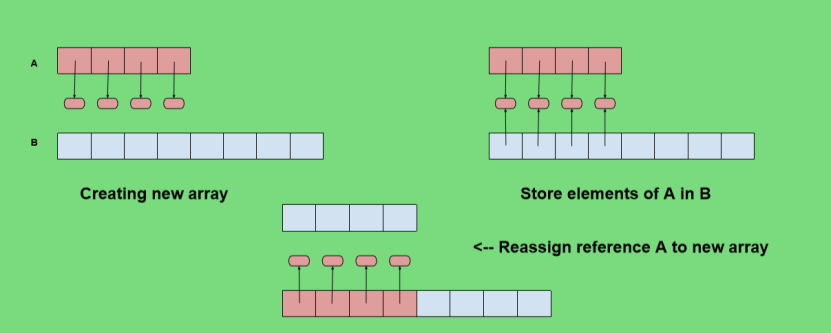

Dynamic Array
- what is the good space/slot size for an array?
- when is the good time to expand/shrink the array?
Growth Pattern:
- Python: NewAllocated=(sizet)newsize+(newsize>>3)+(newsize<9?3:6); // 0, 4, 8, 16, 25, 35, 46, 58, 72, 88, …
- Java: ((size∗3)/2)+1
- C#: size∗2
👉 memory management is one of the biggest programming challenges.
Array Complexity
| Operation | Array | Dynamic Array |
|---|---|---|
| Accessing | O(1) | O(1) |
| Searching | O(n) | O(n) |
| Inserting | - | O(n) |
| Deleting | - | O(n) |
Python Collection Complexity
| List [a, b, c, ...] | Dicts {k:v, ...} | Set {a, b, c,} | |||
|---|---|---|---|---|---|
| mylist.append(val) | O(1) | mydict[key] = val | O(1) | myset.add(val) | O(1) |
| mylist[i] | O(1) | mydict[key] | O(1) | ||
| val in mylist | O(N) | key in mydict | O(1) | val in myset | O(1) |
| for val in mylist: | O(N) | for key in mydict: | O(N) | for val in myset: | O(N) |
| mylist.sort() | O(NlogN) | ||||
Trade-offs
# .. make a list .. if thing in my_list: # O(N) # ✅ Good # .. make a set .. if thing in my_set: # O(1) # ❌ Bad # .. make a list .. my_set = set(my_list) # O(N) if thing in my_set: # O(1) # ✅ Good # .. make a list .. my_set = set(my_list) # O(N) for many_times: if thing in my_set: # O(1)# .. make a list .. if thing in my_list: # O(N) # ✅ Good # .. make a set .. if thing in my_set: # O(1) # ❌ Bad # .. make a list .. my_set = set(my_list) # O(N) if thing in my_set: # O(1) # ✅ Good # .. make a list .. my_set = set(my_list) # O(N) for many_times: if thing in my_set: # O(1)
ADT vs. Data Structure
An abstract data type (ADT) is an abstraction of a data structure which provides only the interface to which a data structure must adhere to. The interface does not give any specific details about how something should be implemented - ADT provides implementation-independent view of a data structure.
Programming language provides different data types to implement/represent a specific data structure.
Array - a linear abstract data type
Array - a java data type
Dynamic Array - array with changable size
List - a python data type, more flexible than a dynamic array
ArrayList/Vector - java data type, implementation of List
Stack & Queue
Stack
Sequential Access vs Random Access (such as Array)
LIFO (Last In First Out) sequential collection
Stack: Operations

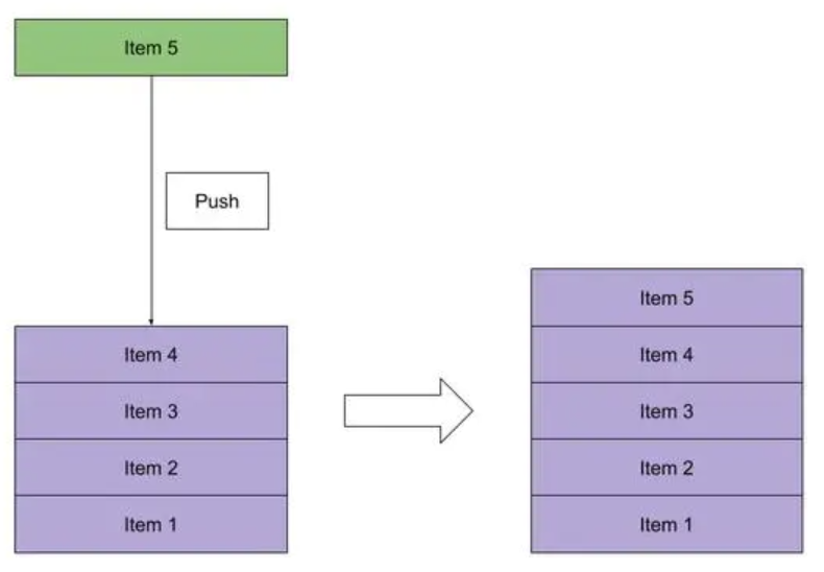

- push() − pushing (storing) an element on the stack

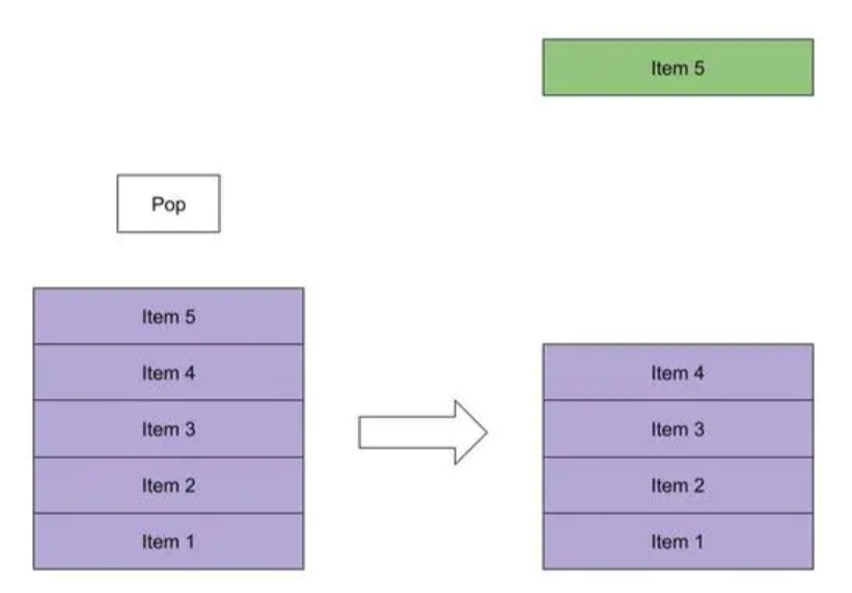

- pop() − removing (accessing) an element from the stack
- top()/peek() − get the top data element of the stack, without removing it
- size(), isEmpty(), isFull()
Stack Complexity
| Operation | Stack |
|---|---|
| Accessing | O(n) |
| Searching | O(n) |
| Inserting | O(1) (push) |
| Deleting | O(1) (pop) |
Queue
- FIFO (First In First Out) sequential collection
Queue: Operations

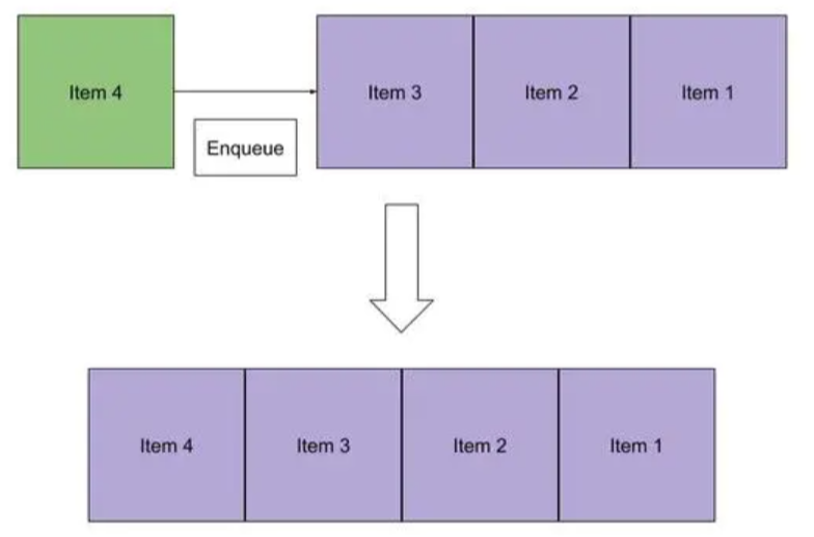

- enqueue() − adding (storing) an element to the queue

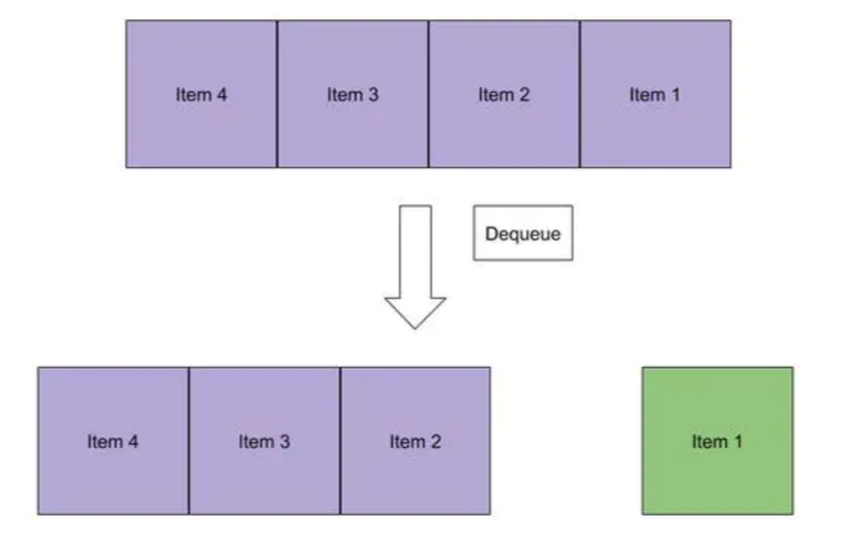

- dequeue() − removing (accessing) an element from the queue
- fist()/peek() − get the first element of the queue, without removing it
- size(), isEmpty(), isFull()
Queue Complexity
| Operation | Queue |
|---|---|
| Accessing | O(n) |
| Searching | O(n) |
| Inserting | O(1) (enqueue) |
| Deleting | O(1) (dequeue) |
Linked List

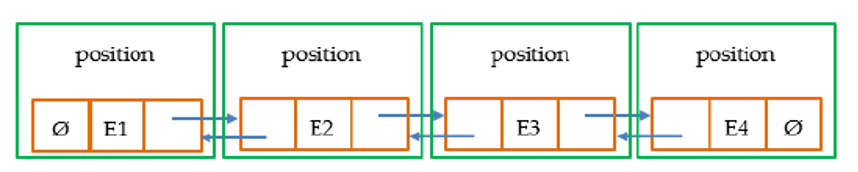

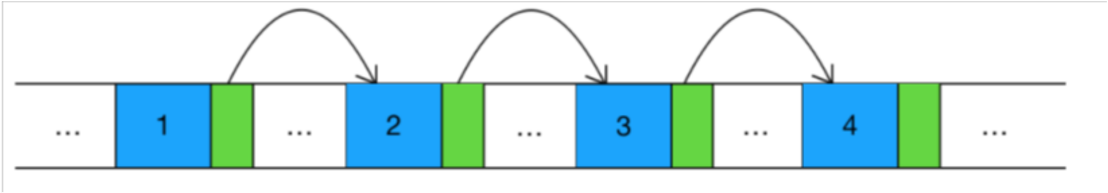

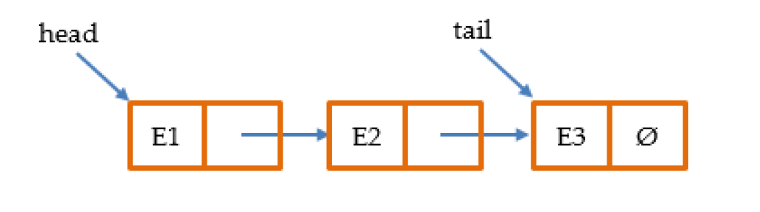

Linked List
dynamic linear data structure
each item contains data & pointer
data stored in a “Node” class
each item holds a relative position relative to the other items: 1st, 2nd, …, last item
List: Operations (potential)
- add(element) - append(element) - insert(position, element) - delete(element) - is_empty() - __len__() - set(position, element) - get(position) - search(element) - index(element) - pop() - pop(position)
Linked List Complexity
| Operation | Linked List | Dynamic Array |
|---|---|---|
| Accessing | O(n) | O(1) |
| Searching | O(n) | O(n) |
| Inserting | O(1) 🤔 | O(n) |
| Deleting | O(1) 🤔 | O(n) |
Linked List vs. Array
✔ dynamic, no need to deal with fixed memory size ✖ accessing speed
Linked List vs. Array
Linked List

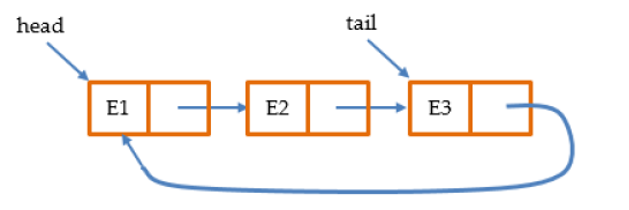

Circular Linked List
a linked list where all nodes are connected to form a circle
- no null at the end
- can iterate from any node
- e.g. for cpu job list - OS putting running applications in a list and then to cycle through them by giviing each of them a slice of time to execute, and then making them wait, when it reaches the end of the list, it can cycle around to the front of the list
circular singly linked list, circular doubly linked list, sorted circular linked list
Circular Linked List: Operations (potential)
- append(element) - delete(element) - search(element) - is_empty() - __len__()
Positional Linked List
- use Position class instead of index
- remove iteration
Positional Linked List: Operations (potential)
- first() - last() - before(position) - after(position) - set(position, element) - search(element) - is_empty() - __len__() - add_first(element) - add_last(element) - add_before(position, element) - add_after(position, element)
Recursion
Recursion
Recursion is the process of defining a problem (or the solution to a problem) in terms of (a simpler version of) itself
👉 Recursion by definition is a function that calls itself.

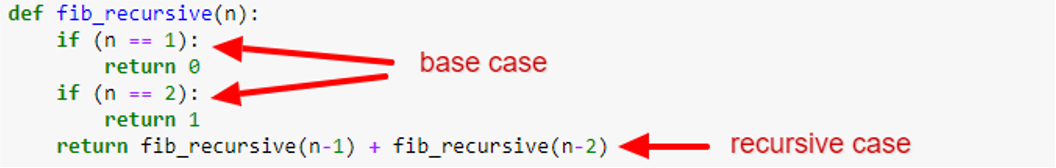

Recursion
- base case
- recursive case
Example:
Fibonacci sequence 0, 1, 1, 2, 3, 5, 8, …
- when n = 1, fib(1) = 0
- when n = 2, fib(2) = 1
- when n > 2, fib(n) = fib(n-1) + fib(n-2)

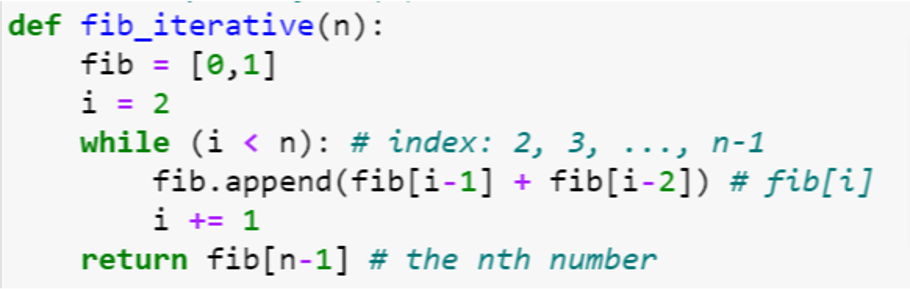

Recursion vs. Iterative
Anything with a recursion can be done iteratively (loop)
🤗 Intuitive/DRY, code readability
🤔 Optimization, call stack

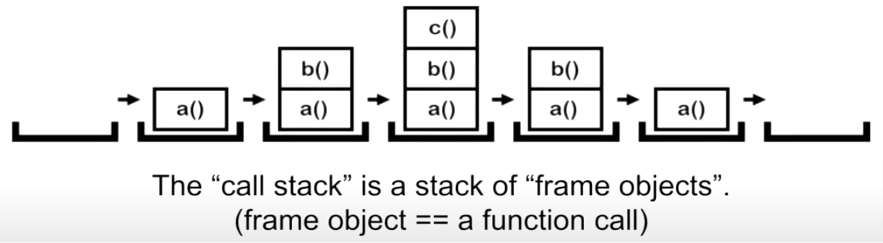

Recursive Call
Call Stack:
fib_recursive(5):
Recursive Call
Max call stack size (stack overflow error)
Tail Call Optimization
Memorization
Recursive Call
Fundamental technique to solve problem:
Identifying the base case
Identifying the recursion formula/equation to transform the problem to smaller version
- Problem requires back-tracking
- Problem has tree structure

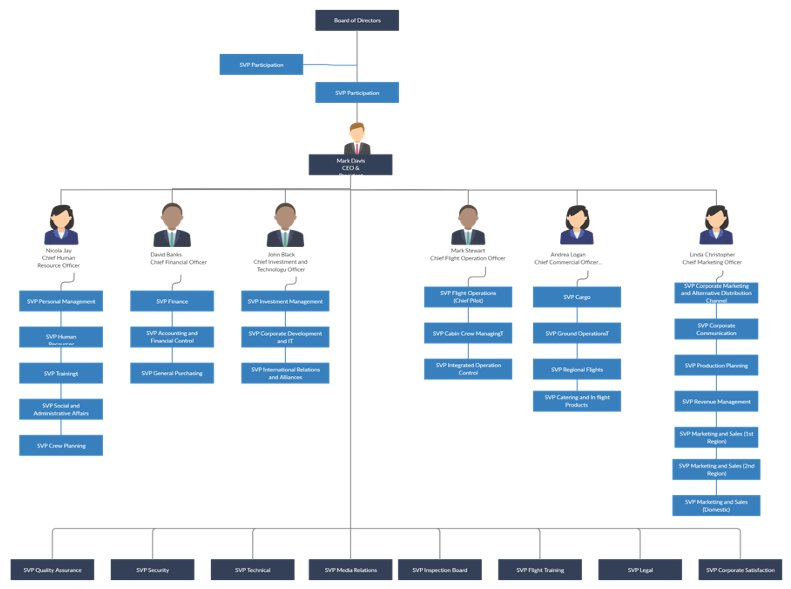

Tree
Tree
Tree
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en"> <head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8" /> <title>simple</title> </head> <body> <h1>A simple web page</h1> <ul> <li>List item one</li> <li>List item two</li> </ul> <h2><a href="http://www.suss.edu.sg">SUSS</a><h2> </body> </html><html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en"> <head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8" /> <title>simple</title> </head> <body> <h1>A simple web page</h1> <ul> <li>List item one</li> <li>List item two</li> </ul> <h2><a href="http://www.suss.edu.sg">SUSS</a><h2> </body> </html>

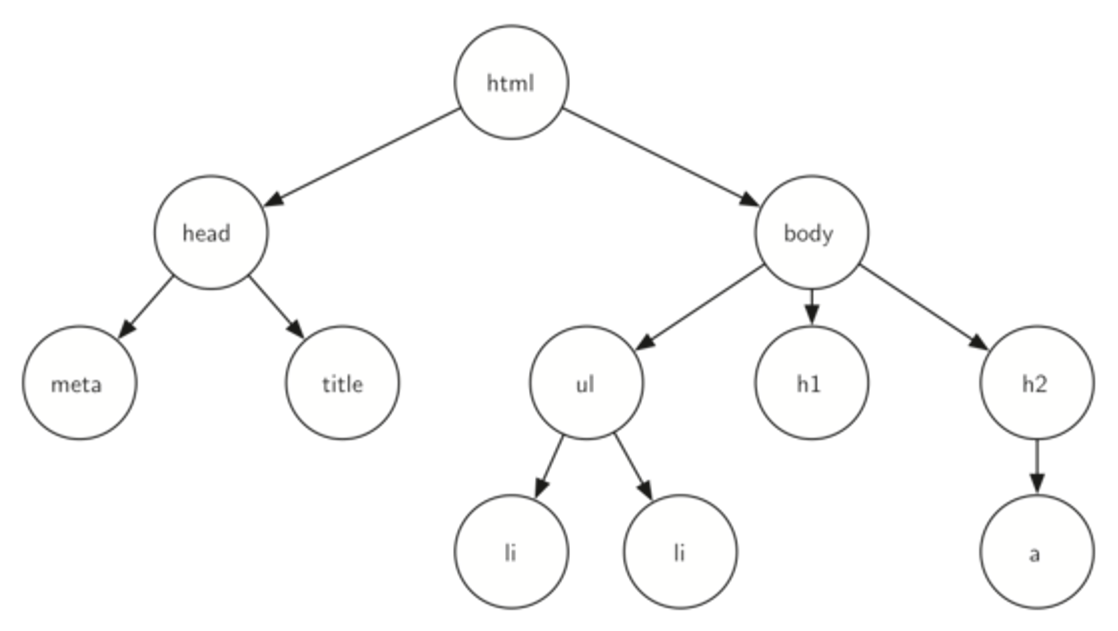

HTML DOM tree

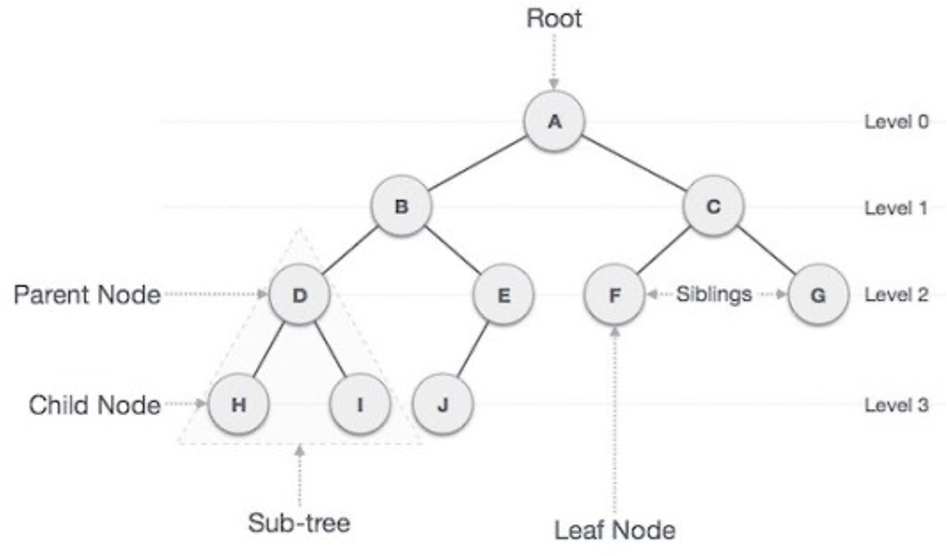

Tree Terminology
- Node: Root, Leaf, Internal Node
- Node: Parent, Children, Sibling
- Edge
- Degree: no. of outgoing edges or Children
- SubTree
- Path: A → B → D → H
- Level: no. edges in path from root to the node
- Depth: no. edges in path from the node to the root
- Height: no. edges in longest path from the node to the leaf

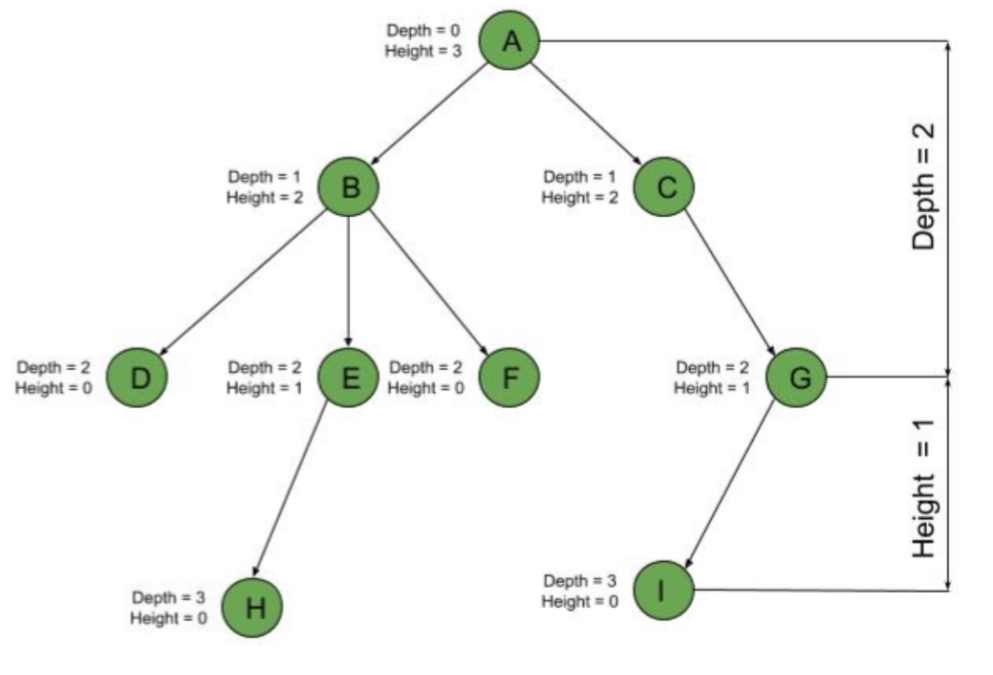

Tree Terminology
- Level
- Depth
- Height
Binary Tree
One root
Max 2 child nodes
One and only one path from root to each node (path)
Max nodes on level: 2l
Max nodes total: 2h+1−1
Binary Tree
['A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', '#', '#', '#', '#', '#', 'J']

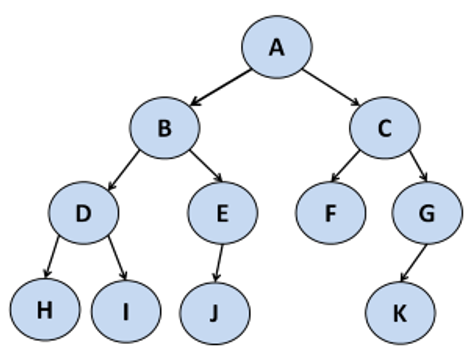

Binary Tree Traverse (DFS): pre-order
ROOT → Left → Right
- Visit the root
- Traverse the left subtree
- Traverse the right subtree
A B D H I E J C F G K
Binary Tree Traverse (DFS): in-order
Left → Root → Right
- Traverse the left subtree
- Visit the root
- Traverse the right subtree
H D I B J E A F C K G
Binary Tree Traverse (DFS): post-order
Left → Right → Root
- Traverse the left subtree
- Traverse the right subtree
- Visit the root
H I D J E B F K G C A
Binary Tree Traverse (BFS): level order
- Visit the root
- Visit the left node
- Visit the right node
- Go to next level
A B C D E F G H I J K

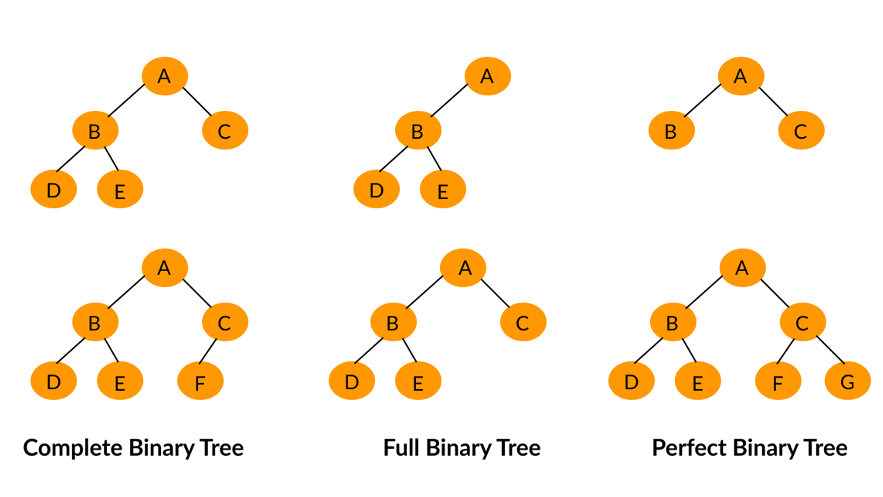

Binary Tree
- Complete Binary Tree : every level is completely filled except the last (leaf) and all nodes are as far left as possible
- Full Binary Tree : every node has two child nodes except leaf
- Perfect Binary Tree : every node has two child nodes except leaf and all leaves on same level

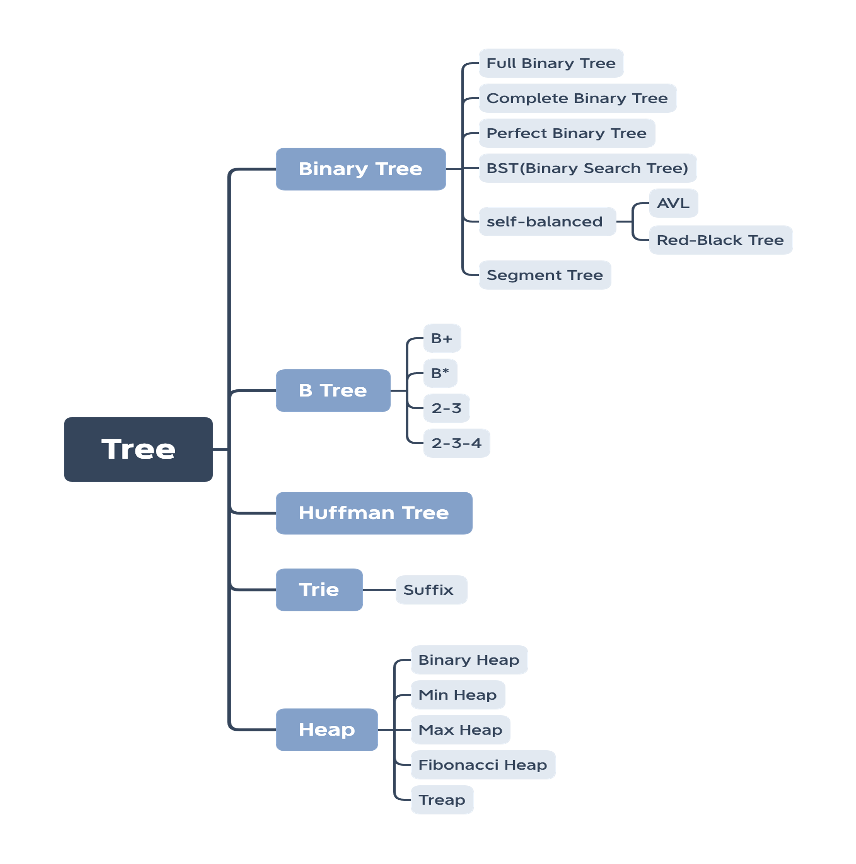

Trees
Summary
Array
| Concept |
|
|---|---|
| Complexity | Accessing O(1), Searching O(n) |
| Notes |
|
| Hands-on | dynamic array, stack/queue, binary search, etc. |
Stack
| Concept | LIFO/FILO |
|---|---|
| Complexity | Accessing O(n), Searching O(n), Inserting/push O(1), Deleting/pop O(1) |
| Notes | Stack implementation by dynamic array or linked list |
| Hands-on | function call stack, expression matching, etc. |
Queue
| Concept | FIFO/LILO |
|---|---|
| Complexity | Accessing O(n), Searching O(n), Inserting/enqueue O(1), Deleting/dequeue O(1) |
| Notes | Queue implementation by dynamic array or linked list |
| Hands-on | priority queue, circular queue, job queue, resource pool, etc. |
Linked List
| Concept |
|
|---|---|
| Complexity | Accessing O(n), Searching O(n), Inserting O(1), Deleting O(1) |
| Notes |
|
| Hands-on | stack, queue, traverse/reverse/update/merge, etc. |
Binary Tree
| Concept |
|
|---|---|
| Complexity |
|
| Notes | stored in array or linked nodes |
| Hands-on | 4 traversal |
Algorithm Design & Pattens
Binary Search
- Input: array, target element
- Output: position (-1 if not existing)
As we know, whenever we are given a sorted Array or LinkedList or Matrix, and we are asked to find a certain element, the best algorithm we can use is the Binary Search. - Shrink the search space every iteration (recursion) - Cannot exclude potential answers during each shrinking
Although the basic idea of binary search is comparatively straightforward, the details can be surprisingly tricky
— Donald Knuth
Binary Search
- Contains
- First occurrence of a key
- Last occurrence of a key
- Least element greater than
- Greatest element less than
- Closest element
Further reading: Generalized Binary Search with predicates and main theorem:
https://www.topcoder.com/community/competitive-programming/tutorials/binary-search
Two Pointers
In problems where we deal with sorted arrays (or LinkedLists) and need to find a set of elements that fulfill certain constraints, the Two Pointers approach becomes quite useful. The set of elements could be a pair, a triplet or even a subarray.

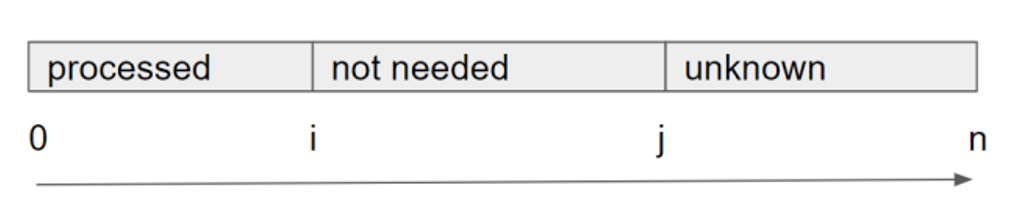

same direction

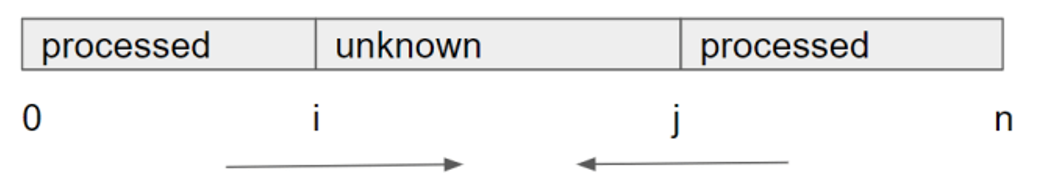

reverse direction

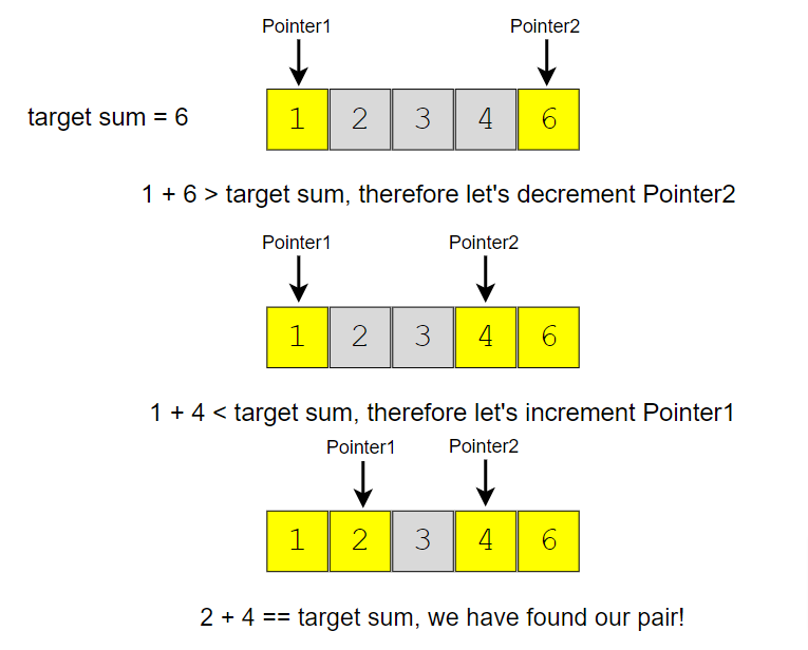

two sum
Given an array of sorted numbers and a target sum, find a pair in the array whose sum is equal to the given target.
reverse a string
Write a function that reverses a string. The input string is given as an array of characters char[]. Do not allocate extra space for another array, you must do this by modifying the input array in-place with O(1) extra memory.
You may assume all the characters consist of printable ascii characters.

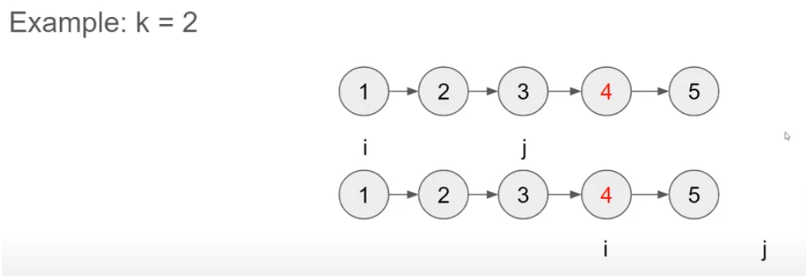

k’th node from the end of linked list
Given the head of a Singly LinkedList, Find k'th node from the end of a linked list.
Fast & Slow Pointers
The Fast & Slow pointer approach, also known as the Hare & Tortoise algorithm, is a pointer algorithm that uses two pointers which move through the array (or sequence/LinkedList) at different speeds.
Fast & Slow Pointers, distance btw them
Speed

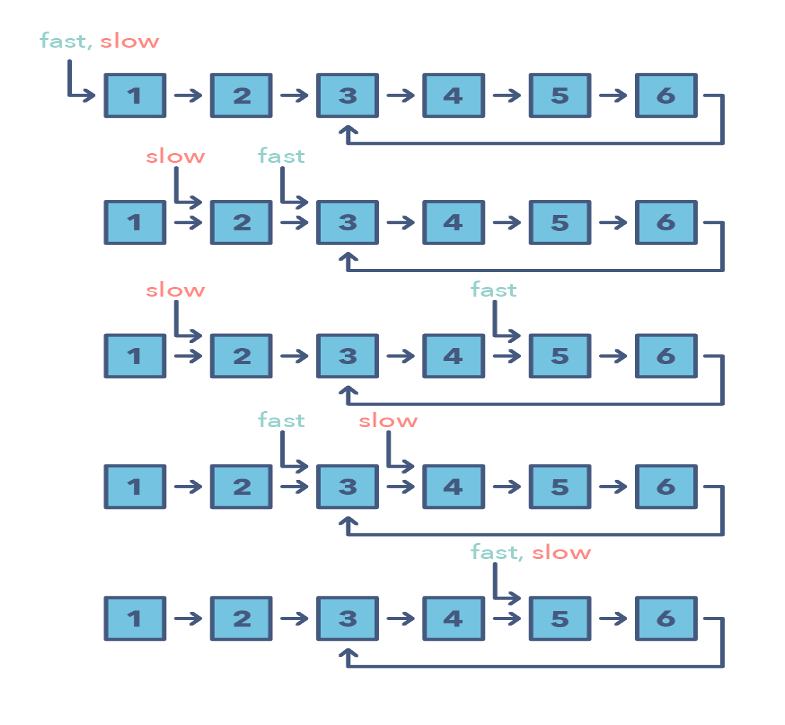

LinkedList has a cycle
Given the head of a Singly LinkedList, write a function to determine if the LinkedList has a cycle in it or not.
Sliding Window
In many problems dealing with an array (or a LinkedList), we are asked to find or calculate something among all the contiguous subarrays (or sublists) of a given size.
the average
Given an array, find the average of all contiguous subarrays of size ‘K’ in it.
longest substring
Given a string, find the length of the longest substring which has no repeating characters.
Example1 Input: String="aabccbb“ Output: 3
Explanation: The longest substring without any repeating characters is "abc".
Example2 Input: String="abbbb“ Output: 2
Explanation: The longest substring without any repeating characters is "ab".
Example3 Input: String="abccde“ Output: 3
Explanation: Longest substrings without any repeating characters are "abc" & "cde".
Lab 1

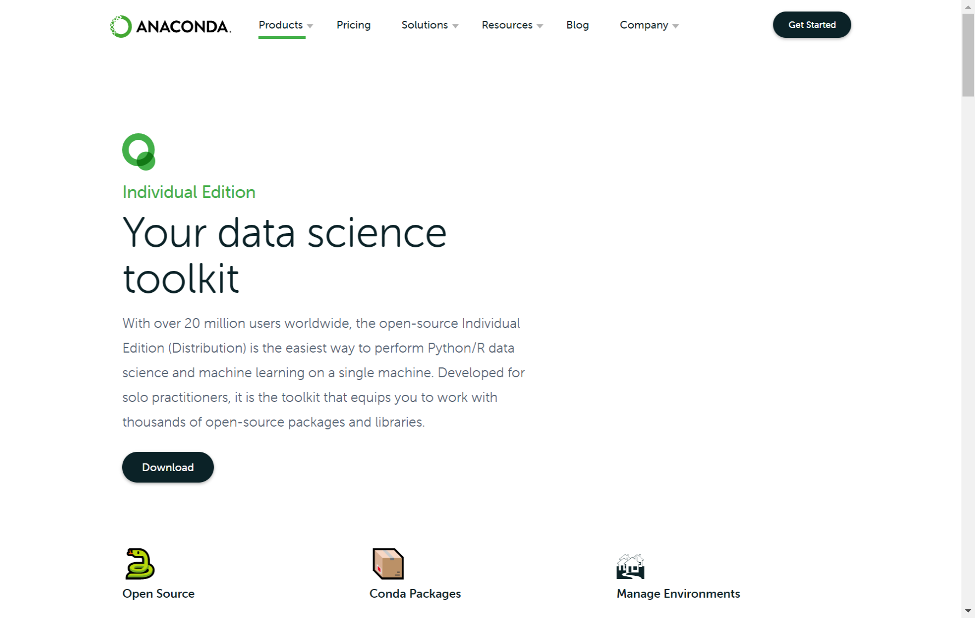

- download and install Anaconda
- create and Activate your Anaconda Python env
- (Optional) install and setup VS Code
- familiar yourself with Python and do exercise 📝 lab1.ipynb
Lab 1

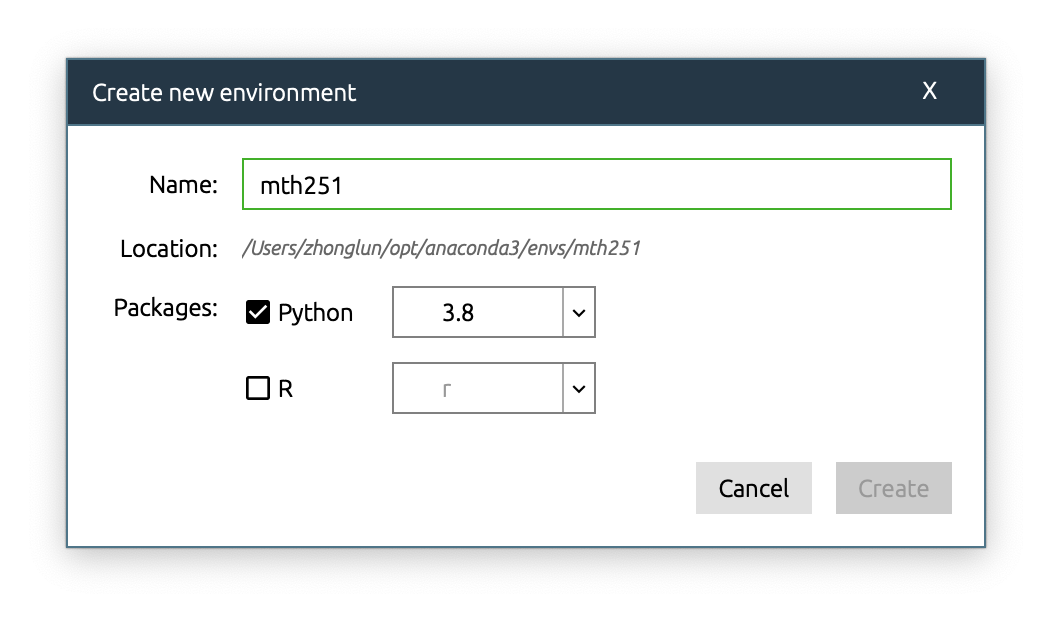

Create and Activate your Anaconda Python env

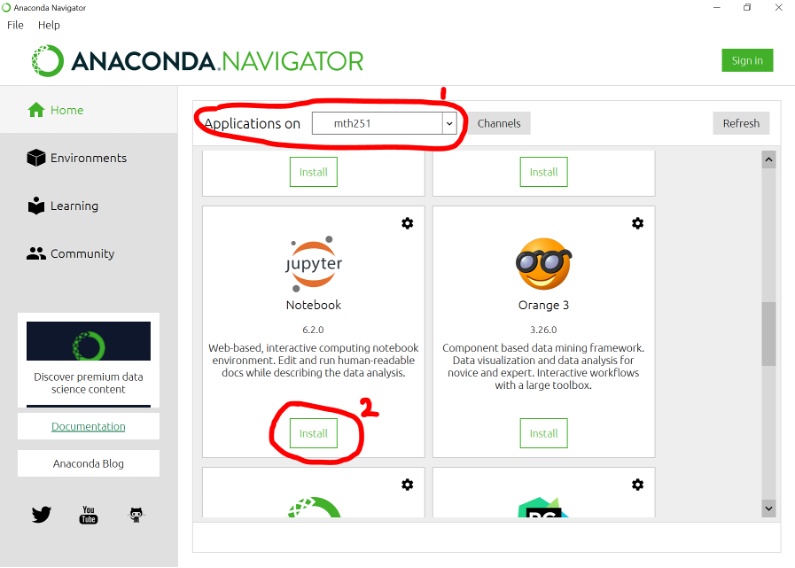

- Launch Conda Navigator
- Environments → +Create to create a new env (mth251)
- Switch to your Python env mth251 from “Application on”
- Install Jupyter Notebook
- After that, Launch Jupyter Notebook
Lab 1
Create and Activate your Anaconda Python env
Also possible to perform via command line:
> # create the env > conda create -n mth251 python=3.8 > # activate the env > conda activate mth251 > # install jupyter > conda install -c conda-forge notebook > # multipledispatch for lab1 > conda install -c anaconda multipledispatch > # start jupyter notebook > jupyter notebook> # create the env > conda create -n mth251 python=3.8 > # activate the env > conda activate mth251 > # install jupyter > conda install -c conda-forge notebook > # multipledispatch for lab1 > conda install -c anaconda multipledispatch > # start jupyter notebook > jupyter notebook
- copy & paste the Jupyter link in the prompt to your browser
- save notebooks to your local
- Control-C to stop Jupyter from the command line
Lab 1
Create and Activate your Anaconda Python env
- Now you are ready to create, edit and run Jupyter notebooks (lab1.ipynb):
Lab 1
VS Code
VS Code now fully integrated with Jupyter notebook, refer to this link:
Jupyter Notebooks in VS Code
Google Colab
Google provides online Jupyter env:
https://colab.research.google.com/
notebooks: https://github.com/fastzhong/mth251/tree/main/public/notebooks
colab: https://colab.research.google.com/github/fastzhong/mth251/blob/main/public/notebooks/lab1.ipynb
Lab 1
lab1.ipynb
Python
- Data Type & Operators
- Collections
- Program Structure
- OO & Class
Big O
Lab 2
- review Array, Stack, Queue, Recursion
- exercise 📝 lab2.ipynb
- priority queue
- circular queue
Lab 2
Exercise: two sum
Given an array of integers nums and an integer target, return indices of the two numbers such that they add up to target.
You may assume that each input would have exactly one solution, and you may not use the same element twice.
Example 1
Input: nums = [2,7,11,15], target = 9
Output: [0,1]
Because nums[0] + nums[1] == 9, we return [0, 1]
Example 2
Input: nums = [3,2,4], target = 6
Output: [1,2]
Example 3
Input: nums = [3,3], target = 6
Output: [0,1]
Lab 2
Exercise: valid parentheses
Given a string s containing just the characters '(', ')', '{', '}', '[' and ']', determine if the input string is valid.
An input string is valid if:
- Open brackets must be closed by the same type of brackets.
- Open brackets must be closed in the correct order.
Example 1
Input: s = "()[]{}" Output: true
Example 2
Input: s = "(]" Output: false
Example 3
Input: s = "([)]" Output: false
Example 4
Input: s = "{[]}" Output: true
Lab 2
Priority Queue is similar to queue but the element with higher priority can be moved forward to the front. Use exiting Queue class to implement a priority queue (element with lower value has higher priority).
Priority Queue can be used in Printer Jobs or Schedule Tasks.
Lab 2

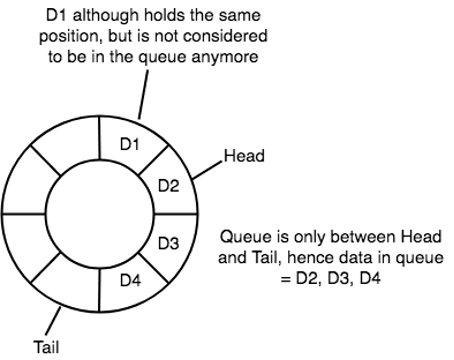

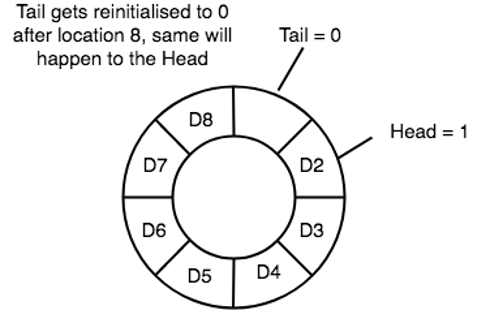

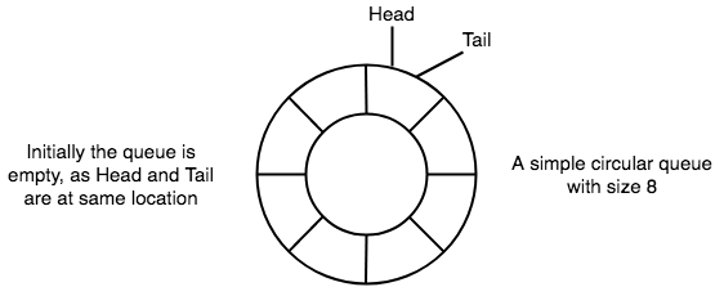

Circular Queue is a linear data structure in which the operations are performed based on FIFO (First In First Out) principle and the last position is connected back to the first position to make a circle. It is also called "Ring Buffer".
Design your implementation of circular queue.
Lab 2

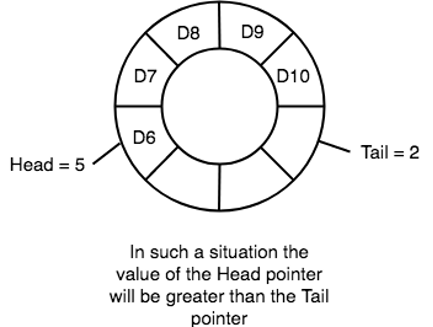

Circular Queue
Lab 2
Circular Queue
Lab 2
Circular Queue
Implementation of CircularQueue class:
- enqueue(): insert the element
- dequeue(): delete the element
- front(): return the first element in the queue, if queue is empty, return None
- rear(): return the last element in the queue, if queue is empty, return None
- is_empty(): return true if queue is empty
- is_full(): return true if queue is full
Lab 3
- Python (lab1)
5. misc.
6. PEP8 - review Linked List, Doubly Linked List
- exercise 📝 lab3.ipynb
Lab 3
Exercise
- implement Stack by linked list
- implement Queue by linked list
- reverse a linked list
- recursive implementation
- iterative implementation
Lab 4
- review Binary Tree and 4 traverse methods
- exercise 📝 lab4.ipynb
Lab 4
Exercise

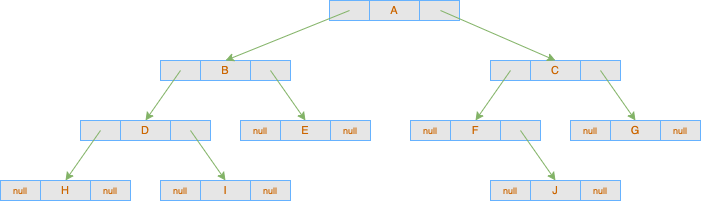

convert binary tree from linked list to array

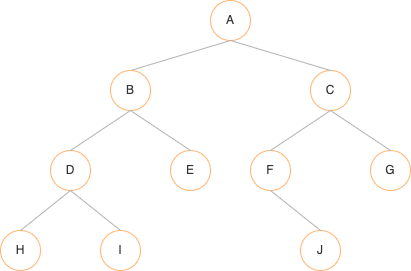

convert binary tree from array to linked list
check a balanced binary tree
Lab 4
Exercise: get maximum depth of binary tree
A binary tree's maximum depth is the number of nodes along the longest path from the root node down to the farthest leaf node.
For example: the maximum depth is 3
Lab 4
Exercise: get minimum depth of binary tree
A binary tree's minimum depth is the number of nodes along the shortest path from the root node down to the nearest leaf node.
For example: the minimum depth is 3
Lab 4
Exercise: check a complete binary tree
In a complete binary tree, every level, except possibly the last, is completely filled, and all nodes in the last level are as far left as possible. It can have between 1 and 2h nodes inclusive at the last level h.
complete = true:
complete = false:
Lab 5
review linear search, binary search
let us do some exercises 📝 lab5.ipynb
Lab 5
lineary search & binary search
Go to https://www.cs.usfca.edu/~galles/visualization/Search.html to understand how Linear Search & Binary Search is working
Implement Linear Search & Binary Search in Python by yourself:
- familiar with Python coding style
- understand the input, output, steps and ending condition
- learn and compare different approaches (time & space complexity)
- test code reliability with different cases
Lab 5
Exercise: palindrome
Implement a Python function to determines if a string is a palindrome, for example, ‘racecar’ and ‘level’ are palindromes
Lab 5
Exercise: remove duplicate numbers
Given a sorted array nums, remove the duplicates in-place such that each element appears only once and returns the new length.
Do not allocate extra space for another array, you must do this by modifying the input array in-place with O(1) extra memory.
Example 1
Input: nums = [1,1,2]
Output: 2, nums = [1,2]
Explanation: Your function should return length = 2, with the first two elements of nums being 1 and 2 respectively. It doesn’t matter what you leave beyond the returned length.
Example 2
Input: nums = [0,0,1,1,1,2,2,3,3,4]
Output: 5, nums = [0,1,2,3,4]
Explanation: Your function should return length = 5, with the first five elements of nums being modified to 0, 1, 2, 3, and 4 respectively. It doesn’t matter what values are set beyond the returned length.
Lab 6
TMA review
